Imagine trying to figure out how thick a pipe is without touching it or making a mess! That’s exactly what an ultrasonic thickness gauge does. It uses sound waves, kind of like how a bat uses echolocation, to measure how thick materials are. Pretty neat, right?
But here’s the tricky part: picking the *best* ultrasonic thickness gauge for your job can feel like a puzzle. There are so many different kinds, and they all have fancy features. You want one that’s accurate, easy to use, and won’t break the bank. It’s easy to get lost in all the technical words!
Don’t worry! By reading on, you’ll learn what makes a good ultrasonic thickness gauge. We’ll break down what to look for, what the different features mean, and how to choose the perfect one for your needs. Get ready to become a thickness gauge expert!

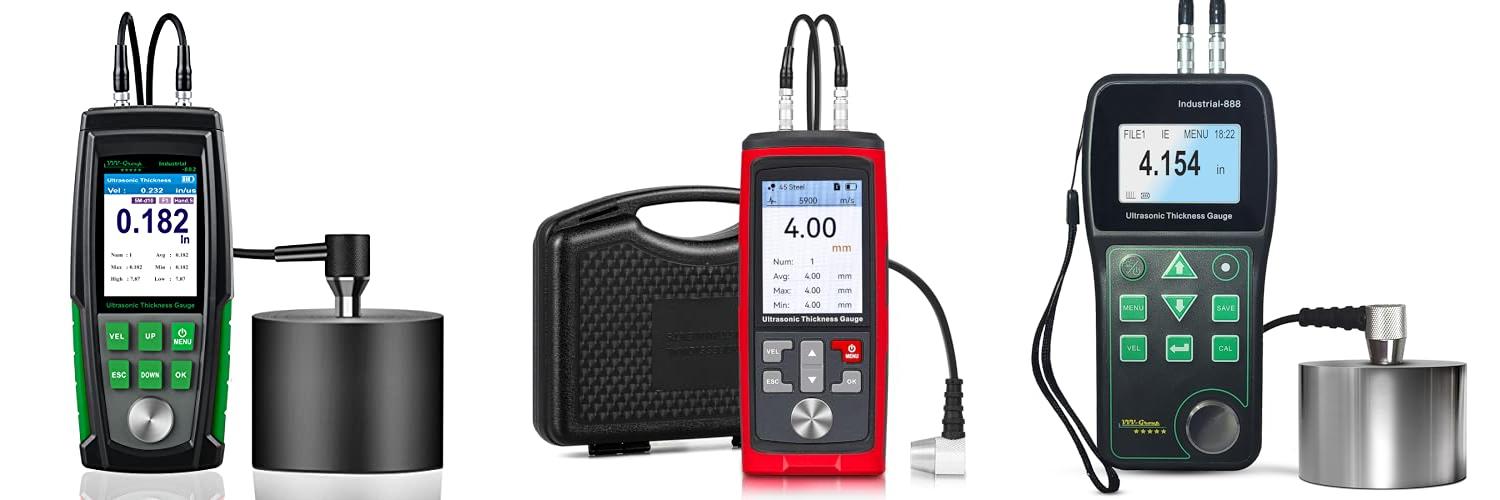

Our Top 5 Ultrasonic Thickness Gauge Recommendations at a Glance
Top 5 Ultrasonic Thickness Gauge Detailed Reviews
1. Ultrasonic Thickness Gauge Industrial-882 / Steel
Rating: 9.3/10
The Ultrasonic Thickness Gauge Industrial-882 is a powerful tool for measuring the thickness of many different materials. It works on steel, metals, plastic, glass, PVC, and pipes. You can measure thicknesses from a tiny 0.039 inches all the way up to 8.85 inches. This handy device uses ultrasonic technology to get accurate readings quickly.
What We Like:
- It’s fast and fits comfortably in your hand.
- The 2.4-inch HD color screen is super clear, and you can change the brightness and even the screen color.
- It’s very accurate, measuring down to 0.01 mm, and you can choose between millimeters or inches.
- Calibration is easy with two different methods, and it can measure sound speeds from 1000 to 9999 m/s.
- It can measure curved, rough, or smooth surfaces thanks to its special sensor.
- This gauge is great for manufacturing, metal work, and checking all sorts of items.
- It’s perfect for checking pipelines and pressure vessels for wear or corrosion.
What Could Be Improved:
- While the accuracy is great, some users might prefer a larger screen size for even more detailed viewing.
- The sound speed range is wide, but a slightly wider upper limit could be helpful for very specialized materials.
This ultrasonic thickness gauge is a reliable and user-friendly instrument for many testing needs. It offers excellent accuracy and versatility for a wide range of applications.
2. Bonvoisin Ultrasonic Thickness Gauge
Rating: 8.5/10
When you need to know the exact thickness of materials, the Bonvoisin Ultrasonic Thickness Gauge is a handy tool. It uses sound waves to measure how thick things are, from thin metal pieces to thicker pipes. This gauge works on many different materials, making it useful for various jobs.
What We Like:
- It measures a wide range of thicknesses, from very thin to quite thick (0.039 to 11.811 inches).
- It’s very precise, giving accurate measurements with a small error margin.
- You can adjust the sound speed for different materials, which helps with accuracy.
- The device can show you the average, minimum, and maximum thickness readings.
- It has helpful features like alarms for high or low thickness and can save up to 1500 readings.
- The color screen with adjustable brightness makes it easy to see the measurements.
- It comes with everything you need, including a probe, calibration block, and a USB cable.
- It’s great for checking the condition of pipelines and pressure vessels, especially for rust or wear.
- It works on metals like steel and copper, as well as plastics and glass.
What Could Be Improved:
- The measurement error range, while small, might be a concern for extremely critical applications.
- While it stores data, exporting it for analysis requires computer software.
This Bonvoisin Ultrasonic Thickness Gauge is a versatile and accurate instrument for anyone needing to measure material thickness across a variety of applications.
3. Ultrasonic Thickness Gauge Industrial-888 / Echo-Echo Mode Measure Through Coating up to 19.685mils (500 microns) / Range 0.039-19.685 in (All Material)
Rating: 9.4/10
The Ultrasonic Thickness Gauge Industrial-888 is a powerful tool for measuring the thickness of materials. It’s designed for tough industrial jobs and can even measure through coatings. This gauge is accurate and can handle a wide range of materials, making it useful for many different industries.
What We Like:
- It can measure through coatings up to 20 mils without needing to remove the coating.
- It has a very wide measurement range, from 0.039 inches to 19.685 inches.
- It helps check the purity and evenness of precious metals like gold and silver.
- The gauge is very precise, making it ideal for demanding fields like oil, aviation, and aerospace.
- It’s easy to use and shows all important information on its display, like thickness, battery life, and calibration status.
- It saves up to 500 measurement results with time and sound velocity details.
What Could Be Improved:
- The description mentions measuring through coatings up to 19.685 mils (500 microns) in the title, but the features section states “up to 20 mils”. This slight difference in stated capacity could be clearer.
This Industrial-888 thickness gauge is a versatile and precise instrument. It’s a great tool for anyone needing reliable thickness measurements in challenging environments.
4. Ultrasonic Thickness Gauge Industrial-882X / Steel
Rating: 9.2/10
The Ultrasonic Thickness Gauge Industrial-882X is a powerful tool for anyone needing to accurately measure the thickness of various materials. It uses sound waves to get precise readings, making it ideal for industrial jobs like checking pipes and pressure vessels.
What We Like:
- It measures thickness accurately using ultrasonic waves.
- It works with many materials like steel, plastic, and glass.
- The measurement range is wide, from 0.039 to 11.811 inches (1-300mm).
- Calibration is simple with a reference block.
- It has a clear color screen with adjustable brightness and custom colors.
- The handheld design makes it easy to carry and use anywhere.
- It’s great for quality control, maintenance, and engineering.
What Could Be Improved:
- It’s not recommended for porous materials like cast iron.
This gauge is a top-notch instrument for professionals. It offers reliable and fast measurements in tough work settings.
5. Ultrasonic Thickness Gauge Industrial-888X Echo-Echo Mode Measure Through Coating up to 19.685mils (500 microns) / Cast Iron Thickness Measurement/PC Connection (All Material)
Rating: 9.2/10
The Ultrasonic Thickness Gauge Industrial-888X is a powerful tool for measuring the thickness of materials, even through coatings. It’s designed for tough industrial jobs and offers great accuracy.
What We Like:
- The Echo-Echo mode lets you measure thickness without removing protective coatings, up to 20 mils thick. This keeps your materials in good condition.
- It measures a wide range of thicknesses, from 0.039 to 19.68 inches, and works with many materials like cast iron.
- It has a special function to check the purity and evenness of precious metals, which is great for quality control.
- You can connect it to a PC to save your measurements in XLSX or PDF files, making data management easy.
- It offers super accurate readings, which is crucial for important jobs in industries like oil and gas, aviation, and shipbuilding.
- The display shows all important information, and it can store 500 sets of measurement results.
What Could Be Improved:
- The product description mentions measuring through coatings up to 19.685 mils (500 microns) in the title, but the feature list states up to 20 mils. This slight difference might be confusing.
- While it connects to a PC, the need for a separate flash drive with software might be an extra step for some users.
This gauge is a reliable choice for professionals who need precise measurements in demanding environments. Its versatility and advanced features make it a valuable asset.
Your Guide to Choosing the Best Ultrasonic Thickness Gauge
Are you looking for a way to measure how thick different materials are without damaging them? An ultrasonic thickness gauge is a super useful tool for this! It uses sound waves to figure out the thickness. This guide will help you pick the right one for your needs.
Why Use an Ultrasonic Thickness Gauge?
These gauges are great for checking the thickness of things like metal pipes, tanks, and even plastic parts. They are especially helpful when you can only get to one side of the material. They help you make sure things are safe and working correctly.
Key Features to Look For
When you’re shopping for an ultrasonic thickness gauge, keep these important features in mind:
- Accuracy: How close the measurement is to the real thickness. Look for gauges that offer high accuracy, often measured in millimeters or inches.
- Measuring Range: The smallest and largest thickness the gauge can measure. Make sure it can handle the materials you’ll be working with.
- Display: A clear and easy-to-read screen. Some have backlights, which are helpful in dim places.
- Data Logging: The ability to save your measurements. This is good for keeping records.
- Transducer Types: These are the parts that send and receive the sound waves. Different types work best for different materials and thicknesses.
- Battery Life: How long the gauge can work on a single charge or set of batteries.
Important Materials You Can Measure
Ultrasonic thickness gauges work on many different materials, including:
- Metals: Steel, aluminum, iron, and more. This is very common for checking pipes and tanks in factories.
- Plastics: Many types of plastic can be measured.
- Glass: Used for checking the thickness of glass windows or containers.
- Rubber: Useful for checking the thickness of hoses or seals.
- Composites: Materials made of different parts, like fiberglass.
Factors That Affect Gauge Quality
Some things can make your gauge work better or not as well:
- Build Quality: A sturdy gauge will last longer, especially if you use it a lot.
- Brand Reputation: Well-known brands often make reliable tools.
- Ease of Use: A simple design makes it easier to take measurements quickly and correctly.
- Calibration: How well the gauge is set up to give accurate readings. Most gauges need to be calibrated with a known thickness.
- Temperature: Extreme heat or cold can sometimes affect how accurately the gauge works.
User Experience and Use Cases
Using an ultrasonic thickness gauge is usually straightforward:
- Preparation: Make sure the surface you’re measuring is clean. You’ll also need a couplant, which is a gel or liquid that helps the sound waves travel.
- Calibration: You’ll often need to calibrate the gauge using a known thickness of the same material.
- Measurement: Put the transducer (the probe) on the surface with the couplant. The gauge will then show the thickness.
Common Uses:
- Manufacturing: Checking the thickness of products to ensure they meet standards.
- Maintenance: Inspecting pipes and tanks in industries like oil and gas or chemical plants to prevent leaks or failures.
- Automotive: Measuring the thickness of car body panels or brake discs.
- Construction: Checking the thickness of concrete or coatings.
Frequently Asked Questions (FAQ)**
Q: What is an ultrasonic thickness gauge?
A: It is a device that uses sound waves to measure the thickness of materials without touching the other side.
Q: How does an ultrasonic thickness gauge work?
A: It sends sound waves into the material and measures how long it takes for them to bounce back.
Q: What kind of materials can I measure?
A: You can measure metals, plastics, glass, rubber, and composites.
Q: Do I need a special gel to use it?
A: Yes, you need a couplant, which is usually a gel or liquid, to help the sound waves travel.
Q: How accurate are these gauges?
A: Accuracy varies, but many good gauges can measure to within a few thousandths of an inch or a tenth of a millimeter.
Q: Can I measure very thin materials?
A: Most gauges have a minimum thickness they can measure. Check the specifications for the gauge you are considering.
Q: What is calibration?
A: Calibration is setting up the gauge so it gives correct measurements. You usually use a piece of material with a known thickness.
Q: What is a transducer?
A: The transducer is the part of the gauge that touches the material and sends and receives the sound waves.
Q: Can I use it on rusty or painted surfaces?
A: It’s best to clean the surface as much as possible. Heavy rust or thick paint can affect the readings.
Q: Are there different types of ultrasonic thickness gauges?
A: Yes, there are basic models and more advanced ones with features like data logging and different types of transducers.
In conclusion, every product has unique features and benefits. We hope this review helps you decide if it meets your needs. An informed choice ensures the best experience.
